| Sound Generator | ZEN-Core |
| Tones | 1,154 tones///74 Drum kits///Sound packs from Roland Cloud are available |
| Effects | Tone MFX: 2 systems, 93 types///Total MFX: 1 system, 15 types///Reverb: 1 system, 4 types |
| Keyboard | 61 keys (Box-shape Keys with velocity) |
| Touch Sensitivity | Key Touch: 9 types, fixed touch |
| Speaker | Speaker: 5 cm(2 inches)x2(with speaker box)///Passive radiator x2 |
| Bluetooth | Bluetooth Ver 5.0///Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)///CODEC: SBC (Supports SCMS-T content protection) |
| Style | Preset: 203 styles///Z-Style packs from Roland Cloud are available |
| Functions | Start, Stop, Intro, Ending, Sync Start, Variation1, Variation2, Variation3, Variation4, Part Mute |
| Chord Sequencer | Preset Chord Pattern: 304 types |
| User Scene | Scene: 256///* Import / export possible |
| Playable Software | Proprietary MIDI format (99 songs, Approx. 70,000 notes memory per song)///Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64--320 kbps, requires USB flash drive) |
| Recordable Software | Proprietary MIDI format/99 songs,Approx.70000 notes memory song)///Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive) |
| Master Tuning | 415.3--466.2 Hz (Adjustable in increments of 0.1 Hz) |
| Mic Effects | Auto Harmony(9 types)///Voice Transformer (Octave: -1--+1, Formant: -12--+12 semitones)///Compressor (Type: Soft, Normal, Hard)///Noise Suppressor (Threshold: -96--0 dB) |
| Convenient Functions | Metronome (Adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)///Transpose (Keyboard/Style: in semitones)///Octave Shift///Dual///Split (Split point adjustable)///Center Cancel/Arpeggiator///Auto Off |
| Display | Graphic LCD 128 x 64 dots |
| Control | Master Volume slider///Pitch Bend Wheel |

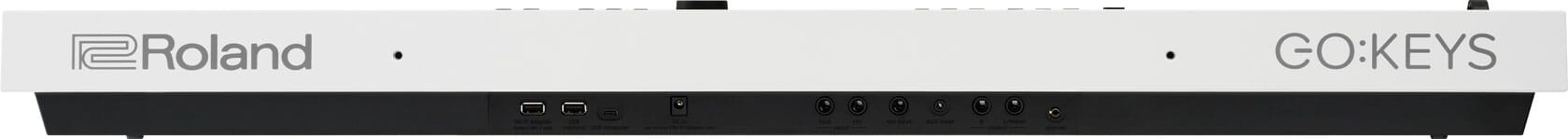

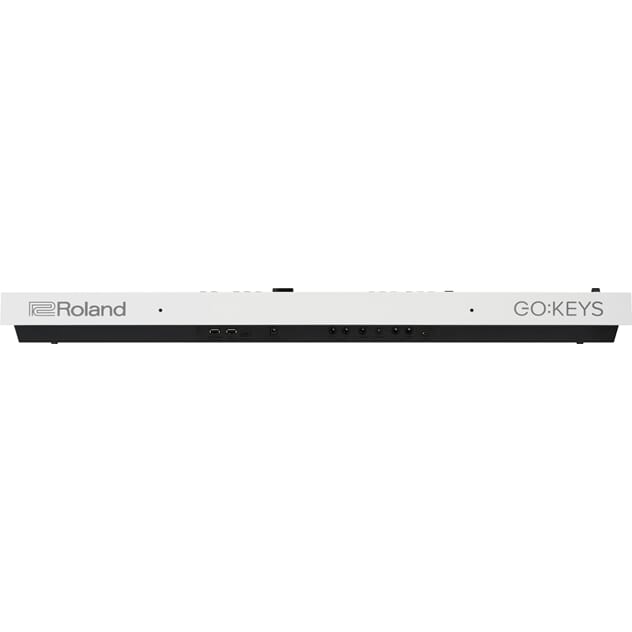

| Connectors | DC In jack///Hold pedal jack (Capable of continuous detection when optional pedal connected)///Control pedal jack (Capable of continuous detection when optional pedal connected)///Input Stereo jack: Stereo miniature phone type///Output (L/Mono, R) jacks: 1/4-inch phone type///Mic Input jack: 1/4-inch phone type///USB COMPUTER port: USB Type-C® (Class Compliant for Audio and MIDI)///USB MEMORY port: USB A (Mass Storage)///EXT DEVICE port: USB A (Roland Cloud Connect WC-1)///Phones jack: Stereo miniature phone type |
| Power Supply | AC adaptor or Alkaline battery (AA, LR6) / Rechargeable Ni-MH battery (AA, HR6) x 8///* Carbon-zinc batteries cannot be used. |
| Power Consumption | 9 W (When using the included AC adaptor) |
| Battery Life for Continuous Use | Rechargeable Ni-MH batteries (AA, HR6): Approximately 6 hours (When using batteries having a capacity of 1,900 mAh.)///Alkaline batteries (AA, LR6): Approximately 5 hours///*This figure will vary depending on the actual conditions of use. |
| Accessories | Quick Start///Leaflet "USING THE UNIT SAFELY"///AC Adaptor///Power Cord |
| Option (Sold separately) | Dedicated music rest: MRGKS3/5///Keyboard stand: KS-11Z, KS-13, KS-20X///Damper pedal: DP series///Wireless adapter: WC-1 |
| Width | 950 mm,37-7/16 inches |
| Depth | Detached music rest: 286 mm,11-5/16 inches///With music rest:395 mm,15-9/16 inches |
| Height | Detached music rest: 87 mm,3-7/16 inches///With music rest:245 mm,9-11/16 |
| Weight | 4.5 kg, 9 lbs 15 oz///5.1 kg, 11 lbs 4 oz (GO:KEYS 3 with music rest) |
